Manual Box & Pan Finger Brake

Description

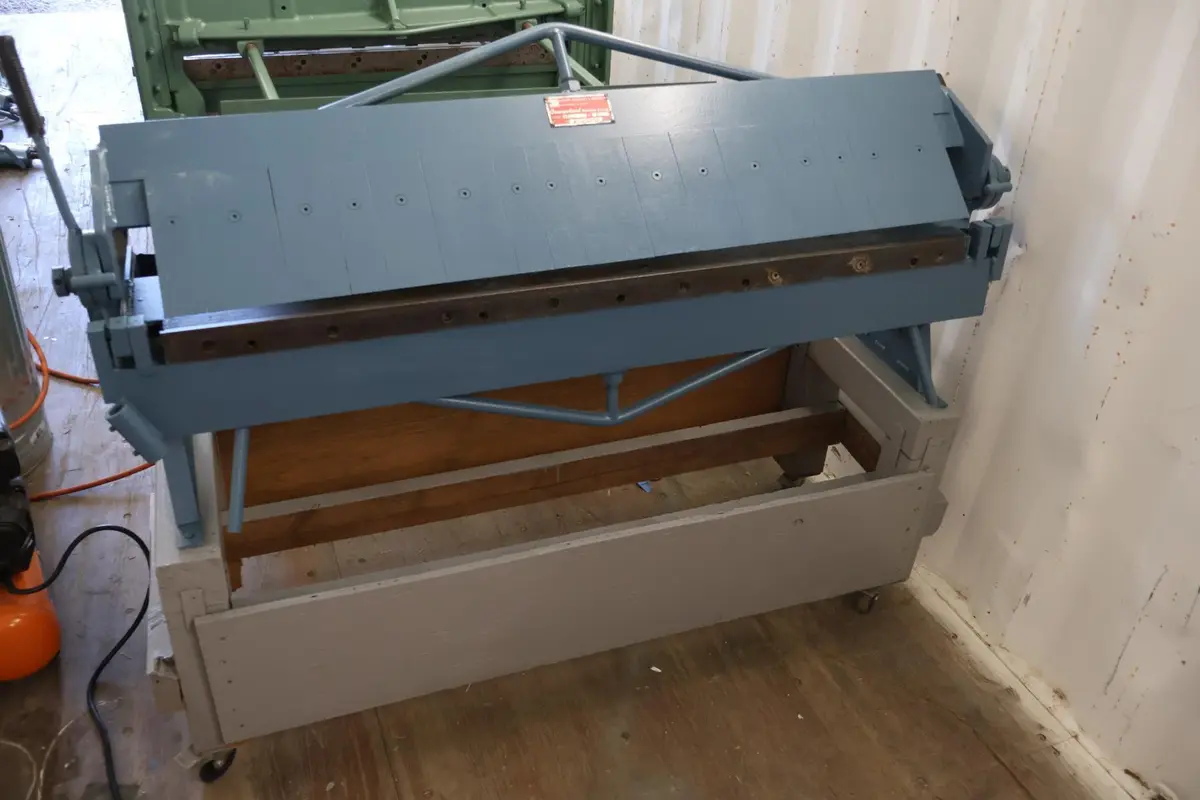

Heavy-Duty Box & Pan Finger Brake
Manufacturer: Roper Whitney Company
Model: U416 Connecticut Bending Brake
Serial No.: 1653-10-93
DOM: October 1993

Features and Specifications:
...Bending Length: 48"
...Material Capacity:
......16-Gauge Mild Steel
......20-Gauge Stainless Steel
...1" Minimum Flange
...Min. Reverse Bend: 1/4"
...Max. Box/Pan Depth: 4"
...Max. Lift of Beam: 1-1/4"
...Front-Rear Beam Adjustment: 5/8"
...(16) Fingers:
......Misc. Widths from 2"-4" Widths
...Shop-Made Wooden Stand w/ Casters

Dimensions (approx.): 61" x 24" x 60"
Weight (approx.): 550 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Machine is coming out of a shop in the Portland, OR Metro Area. The owner has retired and is no longer making parts for sale. These units are stored in a clean, dry, and well-lit environment. Have several pieces for sale; pieces available for inspection and test. The owner was using all the pieces for a sheet metal operation. Call MD Equipment Services (MDES) to schedule lookie loo.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR Metro Area

Equipment is available for inspection.
Seller agrees to load units onto Buyer's transportation.
Buyer is responsible for freight logistics and expenses.
Delivery options available; fee dependent on time and distance.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
