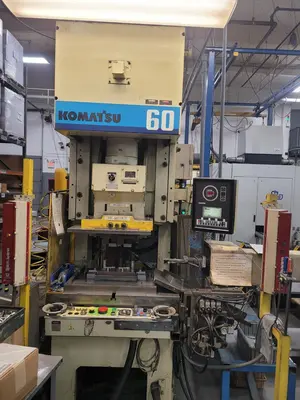

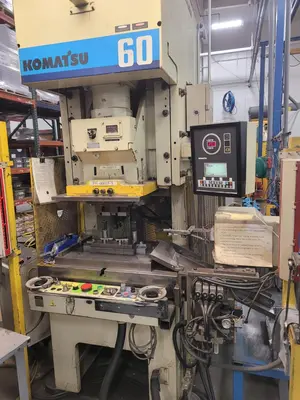

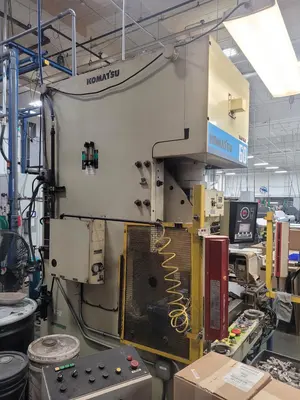

66-Ton Gap Frame Stamping Press

Description

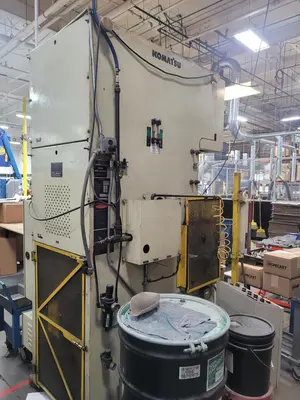

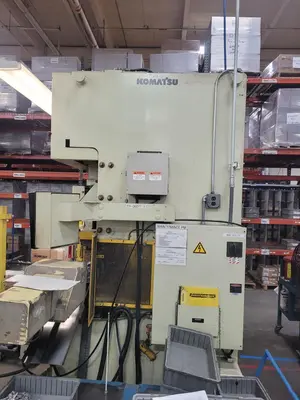

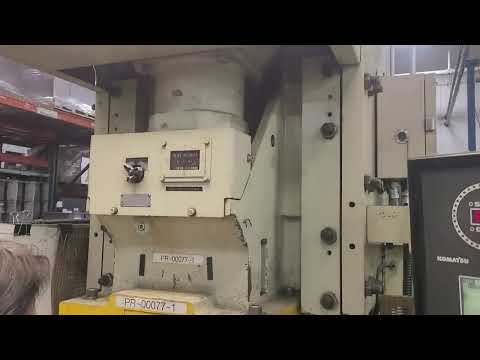

Mechanical Gap Frame Stamping Press
Usage: single-point press for high precision, low deflection

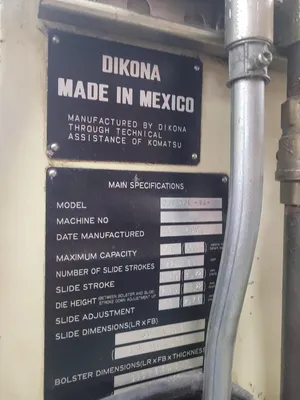

OEM: DIKONA (Dina-Komatsu Nacional)
Made in Mexico with technical assistance of Komatsu
Model: OBS 60L-VS-3
DOM: 3/1998
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 22-11 Amps
Main Motor: 7 HP, 1750 RPM

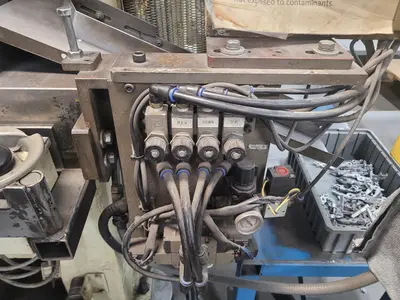

Pneumatic Requirement: 60-80 PSI Clean, Dry Air

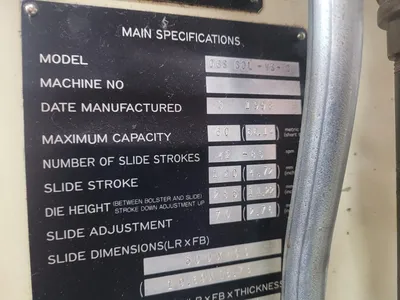

Specifications:
...Capacities:
......Tonnage: 66-Tons (US)

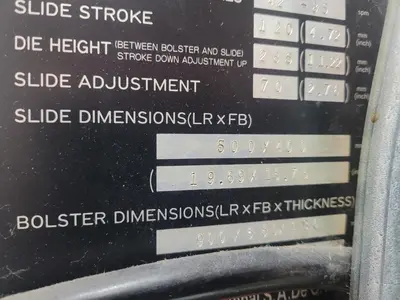

...Stroke Length: 4.72”
...Die Height: 11.22” (stroke down, adjust. Up)
...Shut Height: 16.93” (on bed)

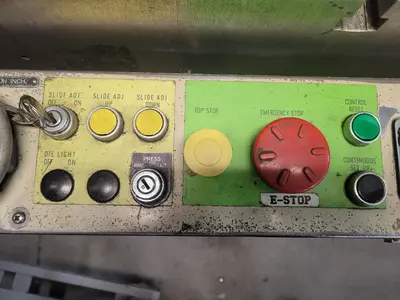

...Slide Adjustment: 2.76" (motorized)
...Ram/Slide Area (L-R x F-B): 19.69” x 15.75”

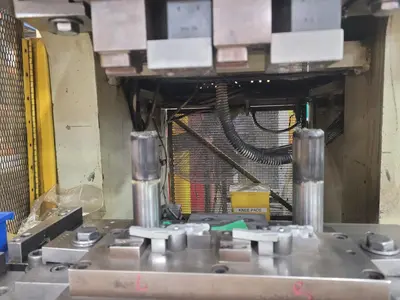

...Bolster Dimensions: (L-R x F-B): 35.5” x 21.6”
...Speed: 42-85 Variable SPM
Design Features:
...Drive Train: Eccentric Main Shaft
...Plunger Guide System:
......Keeps slide moving straight to minimize die wear
...Clutch & Brake:
......Low-maintenance wet, multiple-disc clutch & brake system housed in separate oil bath to
dissipate heat
...Overload Protection:
......Hydraulic design to bleed off pressure and protect components

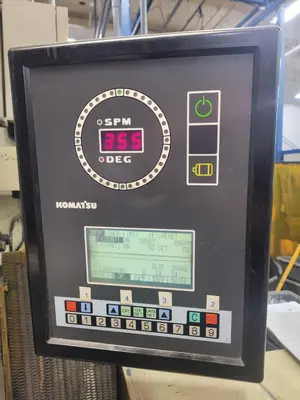

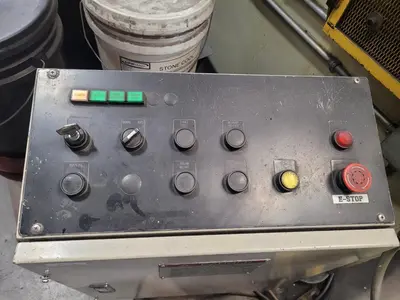

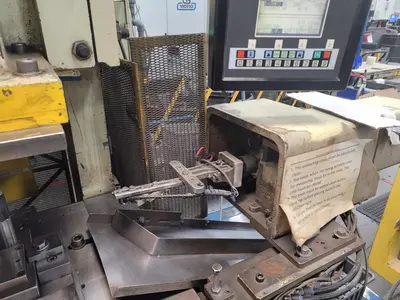

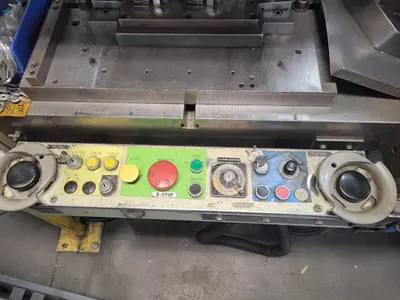

...Komatsu SIT IV (System Integrated Terminal)
......Designed for easy job maintenance and system monitoring

Dimensions (approx.): 60” x 65” x 106”
Weight (approx.): 10,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Owner is moving out of building; lease has expired, not renewing. Not taking all manufacturing pieces with them; some equipment being replaced with new purchases at new location. Equipment is all good running units. Riggers are required to load equipment onto transportation. Equipment is under power; available for test and inspection.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is under power; available for inspection.
Buyer responsible rigging/loading onto transportation.
Buyer responsible for freight logistics and expenses.
MDES can supply loading and freight quotes.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
