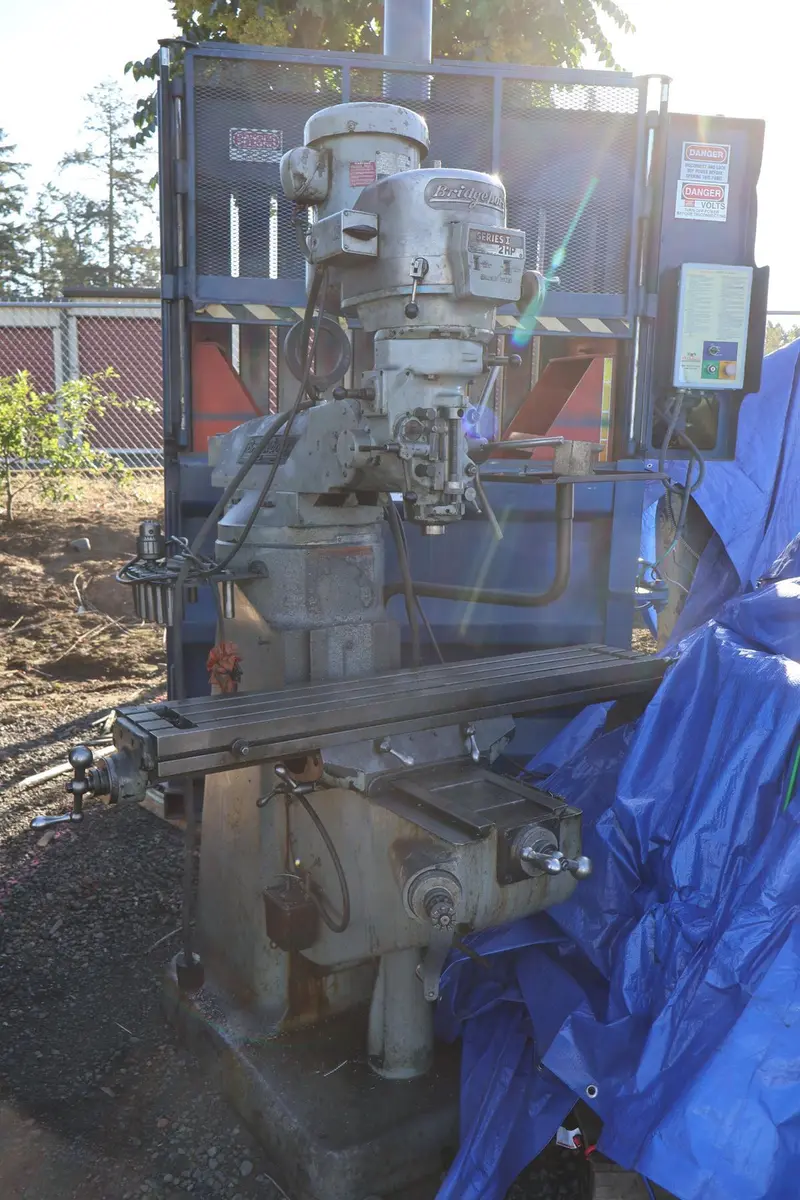

Manual Bridgeport Series I Knee Mill

Description

Bridgeport Style Knee Mill
OEM: Bridgeport
Model No.: Series 1, 2HP
Year of Purchase: 1983
Year: 1983

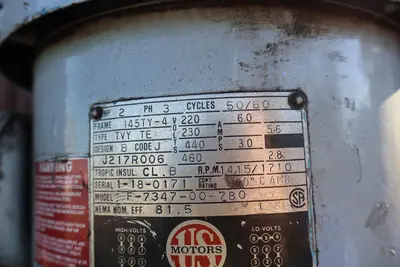

Electrics: 220-440 Volt, 3 Phase, 50-60 Cycle, 6.0-3.0 Amps
Main Spindle: 2 HP, 1710 RPM

Features and Specifications:

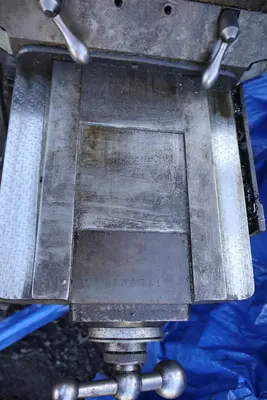

…Table Size: 48″ x 9″
…Workpiece Load: 750 lbs.
…Travels (approx.):
…..X-Axis: 36”
…..Y-Axis: 12”
…..Z-Axis: 16”
…..Quill: 5”
…..Ram: 14”

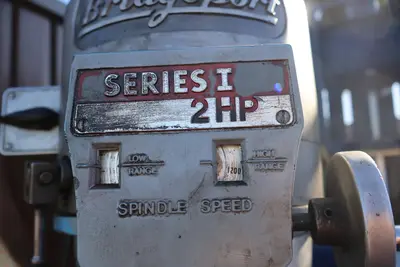

…Variable-Speed Drive:
…..Low Speed: 60 – 500 RPM
…..High Speed: 500 – 4,200 RPM
…Quill Feeds (IPR): .0015, .003, .006
…Spindle Direction Switch
…Spindle Taper: R8

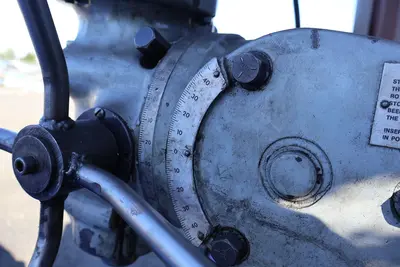

…Knuckle Joint for Head Tilt F-B & L-R
…1-Shot Lube
…Tooling (see pics):
......Collets (approx. 16)
......Drill Chuck
......Tool Holder Mount

Dimensions (approx.): 60” x 60” x 87”
Weight (approx.): 2,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Just pulled from production 2 weeks ago, end of August 2026. Was under power and making parts for years; always a good runner. Had a DRO on machine that was removed for use on another machine. Owner purchased equipment from another machine shop so is rearranging, moving, and replacing units. Machine needs to be cleaned.

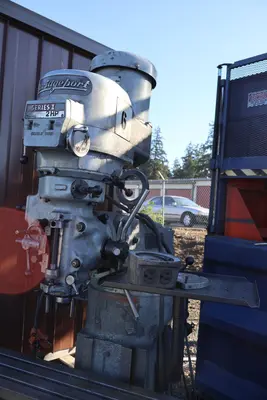

Unit has a 2 HP Variable Speed J-Head configuration. Has holes in spindle nose cap for easy mounting of safety guards. Hand-scraped and hand-fitted ways with hard chrome. Table is hardened and ground.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Salem, OR

Equipment is available for inspection.
Seller agrees to load onto Buyer's transportation.
Buyer is responsible for freight logistics and expenses.
MD Equipment Services will supply freight quotes.
Delivery options available from MD Equipment Services.

Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
