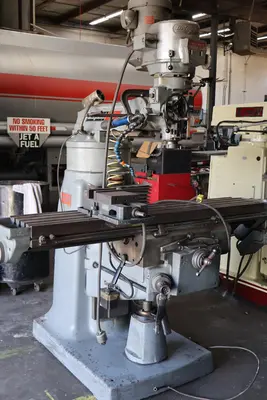

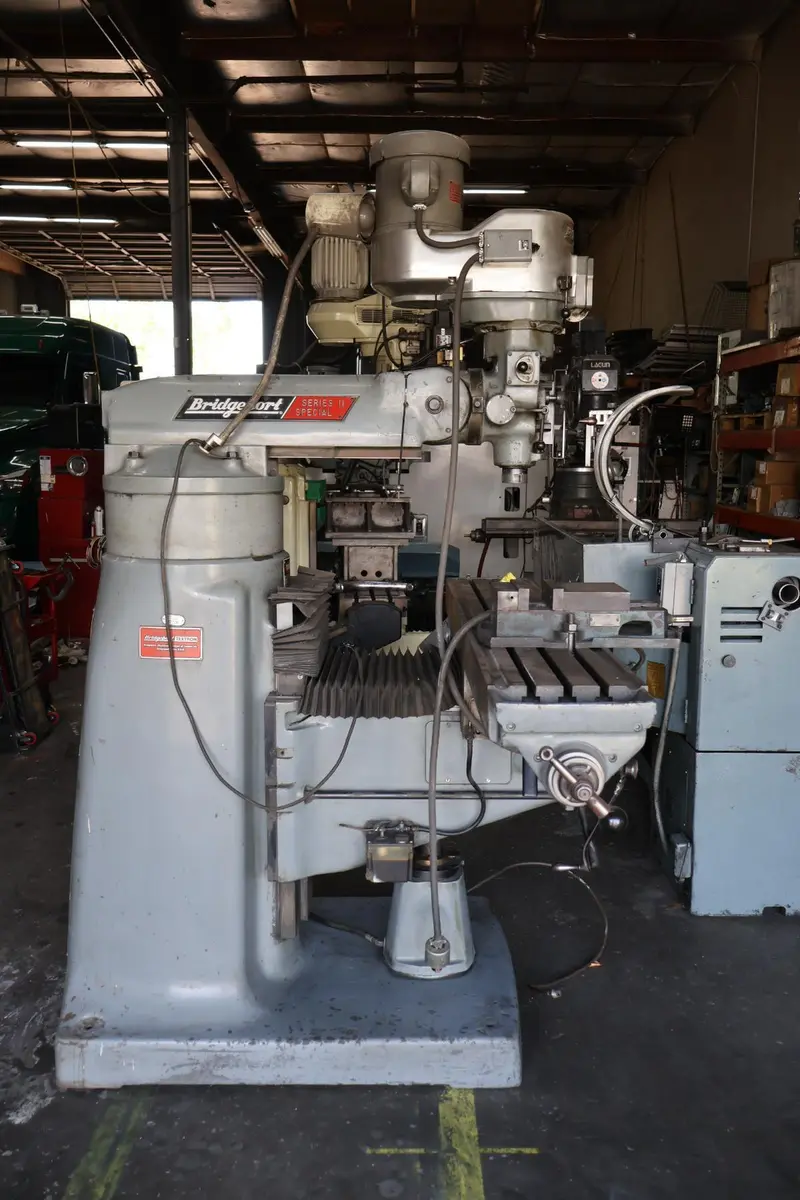

Bridgeport Textron Series II Knee Mill

Description

Manual Vertical Knee Mill
OEM: Bridgeport Textron
Model No.: Series II Special
DOM (circa): 1980
Head Serial No.: 2J-104162-2
Electrics: 230-260 Volt, 3 Phase, 60 Cycle
Main Spindle: 2 HP, 1,745 RPM

Features and Specifications:
…Large, Rigid Frame
…Square/Box Ways (Y-Axis)

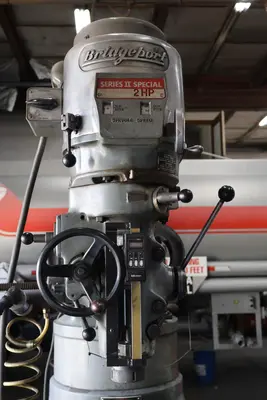

…2J Head
…Table Size: 58″ x 11″
…Travels (approx.):
…..X-Axis: 35” (maybe more due to longer table)
…..Y-Axis: 15”
…..Z-Axis: 16”
…..Quill: 5”
…..Ram: 17”
…Variable-Speed Drive: 60 - 4200 RPM
…Quill Feeds (IPR): .0015, .003, .006
…Workpiece Load: 1,500 lbs.
…X-Axis Power Feed
…Spindle Direction Switch

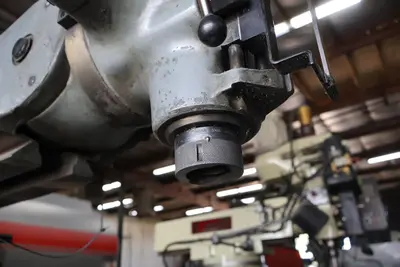

…Spindle Taper: R8
…Knuckle Joint for Head Tilt F-B & L-R
…1-Shot Lube

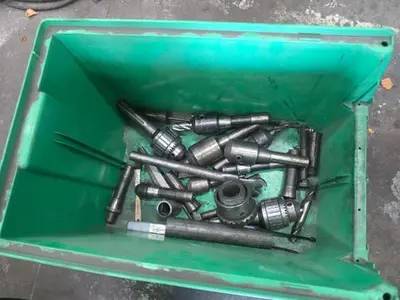

…Tooling (see pic, miscellaneous):
…..Drill Chucks
…..Tool Holders
…..Collets

Equipment Dimensions (approx.): 72” x 72” x 90”
Weight (approx.): 4,500 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

This is being sold by one of my long-term accounts in Portland, OR. He has some surplus machine tools that he is shedding from his operation. This was decommissioned about a month ago; was making parts up until that time.

The 2J head serial number places this unit as being manufactured right around 1980 when the serial numbers for the heads passed the 100,000 threshold.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Portland, OR

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping options.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
