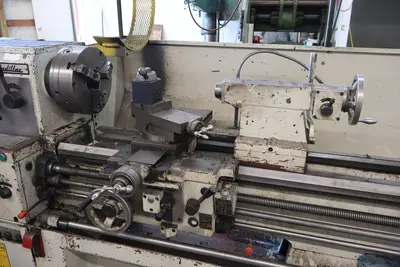

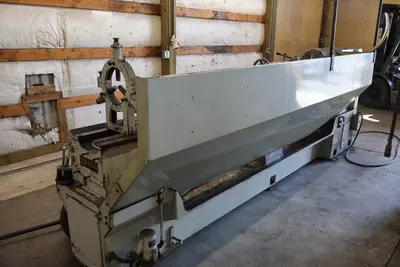

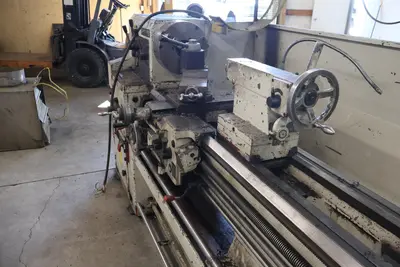

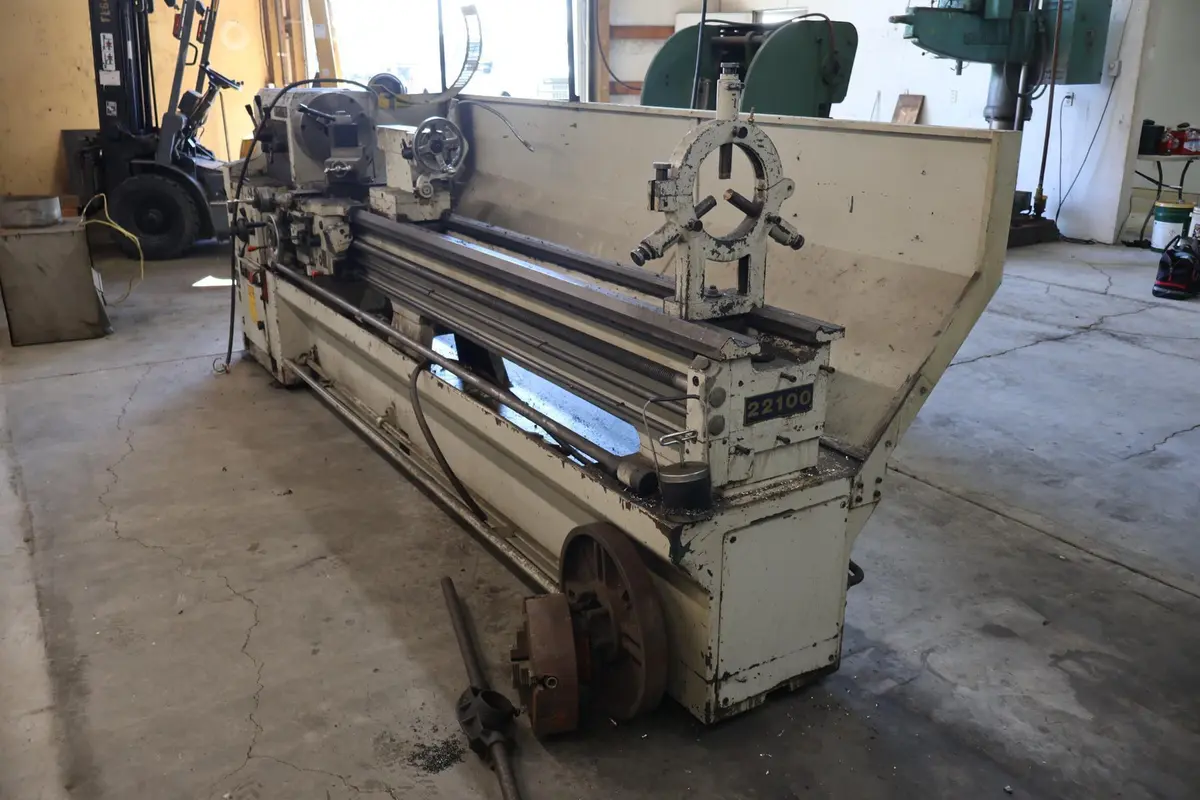

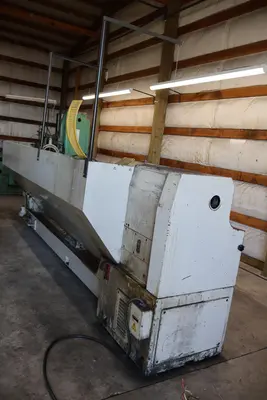

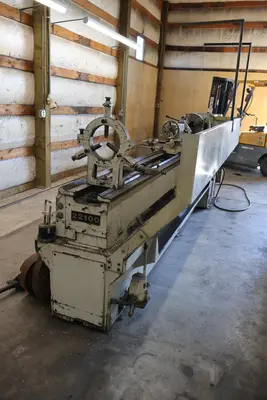

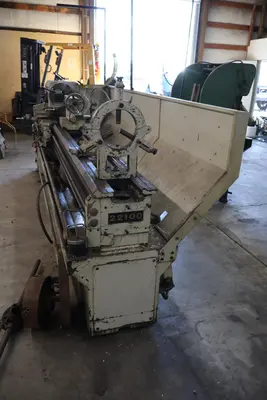

Yang Cadillac Engine Lathe - 22 x 100

Description

Manual Engine Lathe

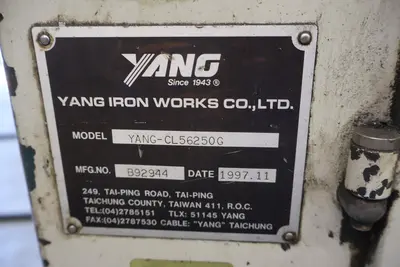

OEM: Yang Iron Works Co. Ltd. (Taiwan)
Model: YANG-CL56250G
Serial No.: B92944
DOM: November 1997
Electrics: 220-440 Volt, 60 Cycle, 3 Phase
Coolant Pump: 1/8 HP, 220-440 Volt, 60 Cycle, 3 Phase
Main Motor: 7.5/10 HP

Features and Specifications:
...Swings:
......Over Bed: 22.05"
......Over X-Slide: 14.77"
......Over Gap: 29.33"
...Gap Length: 13.78"
...Distance Between Centers: 98.43"
...Width of Bed: 13.78"
...Spindle Specs:
......Speeds (12): 25 - 1500 RPM
......Bore: 2.28"
......Taper: MT #6
......Nose: ASA A1-6
...Tailstock Specs:
......Length: 5-1/2"
......Taper: MT #4

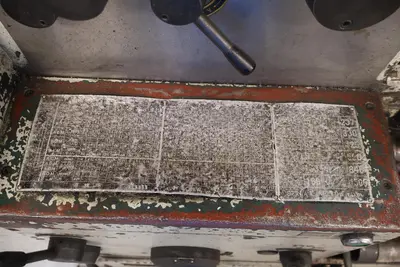

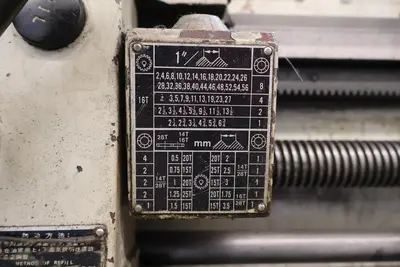

...Threading Specifications:
......Standard Metric Threads: 0.25 - 7 MM Pitch
......Inch Fractional Threads: 4 - 56 TPI
......Diametral Pitch: 8 - 112 DP
......Module Pitch: 0.5 - 35 MP

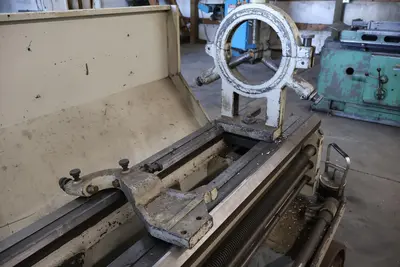

...3-Point Spindle Support

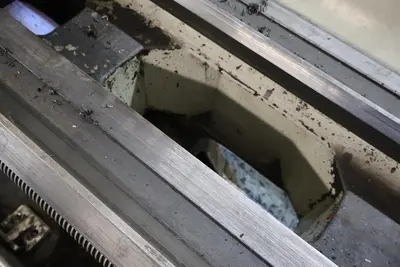

...Hardened Box Ways
...Meehanite Cast Iron Base
...Coolant Capable
Accessories (see pics):
...12" 3-Jaw Chuck
...12" 4-Jaw Chuck
...Face Plate: 18"Ø, 6-Pin

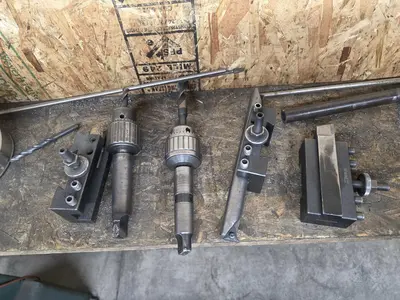

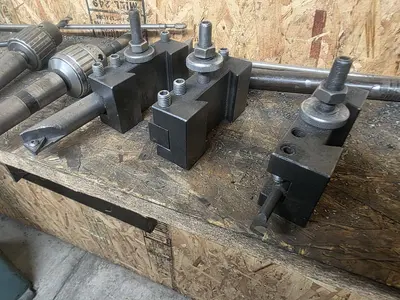

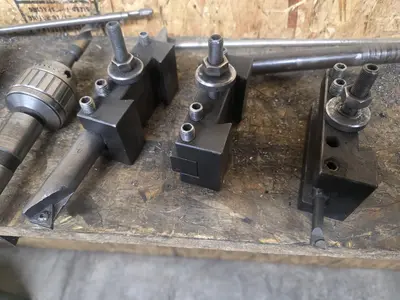

...Holders
...Drill Chucks

Overall Dimensions (approx.): 150" x 48" x 55"
Machine Weight (approx.): 5,100 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner purchased shop recently; came with some equipment that he wishes to sell as he does not need for his business. This lathe was under power and running; has since been disconnected. Owner can connect for demonstration; wish to limit to serious inquiries only.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Oregon (Bend Metro Area)

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Some loading fees may apply if forklift rental required.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
