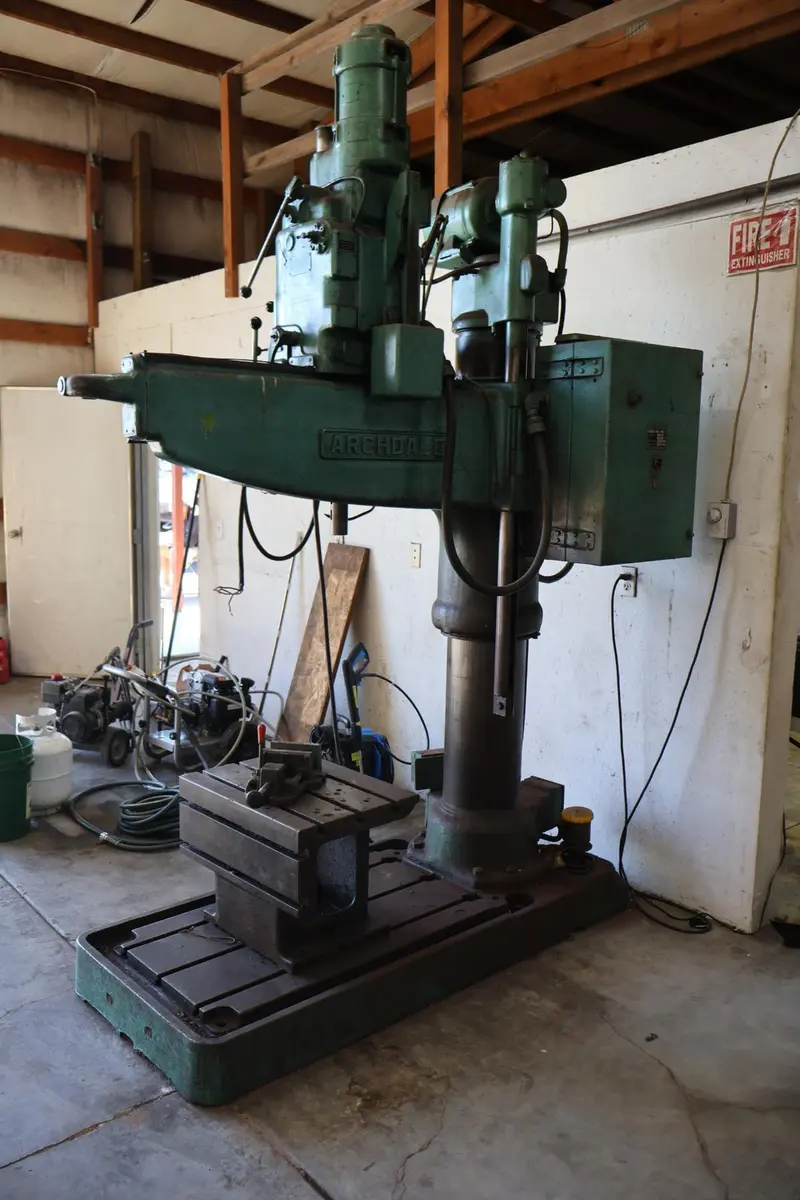

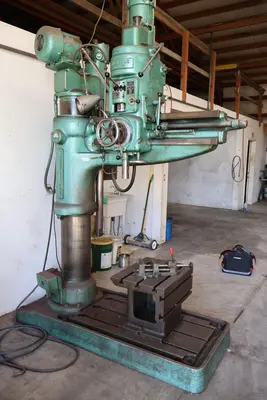

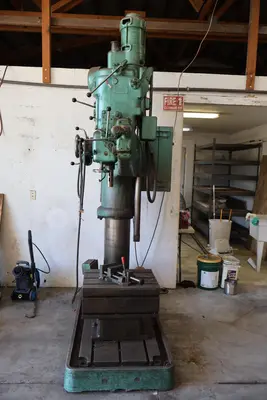

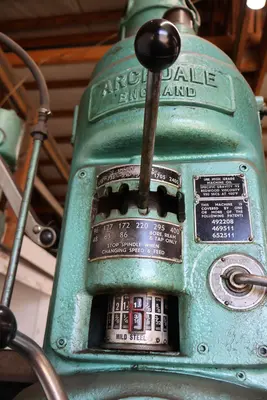

Archdale Radial Drill

Description

Radial Drill
OEM: James Archdale & Co. Ltd. (England)

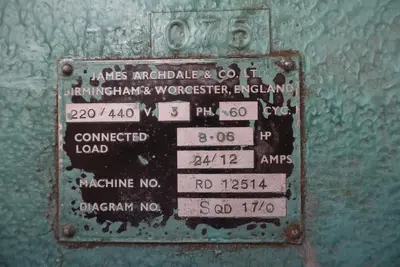

Machine No.: RD 12514
Electrics: 220-440 Volt, 3 Phase, 60 Cycle, 24-12 Amps

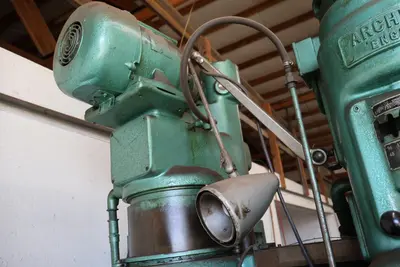

Motor: 8/10 HP

Features and Specifications:
…Column Height: 64”
…Column Diameter (approx.): 11”

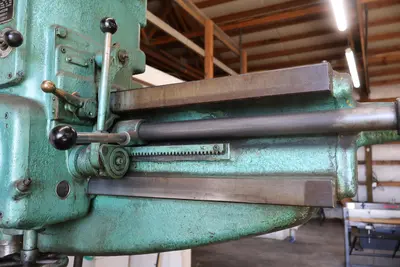

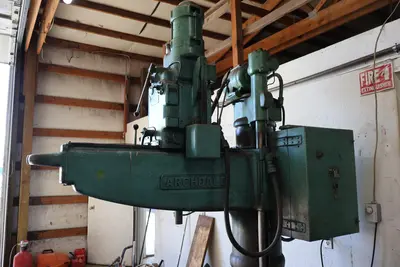

…Arm: 36" - 40"
…Main Table: 24" x 18"
...Drilling and Boring Capacities:
......Bore: 5/8", 7/8", 1-1/4", 1-1/2", 2"
......Drill: 5/8", 3/32", 1/8", 3/16", 1/4", 3/8", 1/2"
...Feed Rates: .005, .010, .017,, .030 IPR

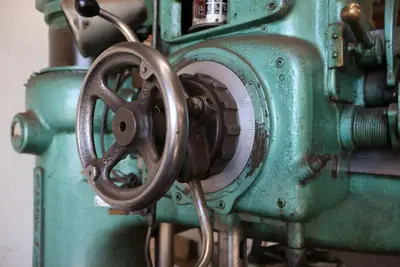

...Fine Feed Dial: 0-12

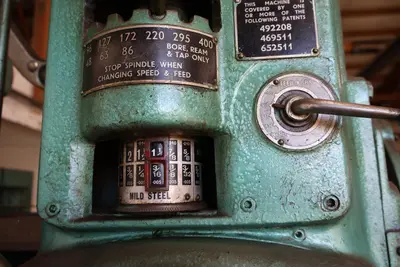

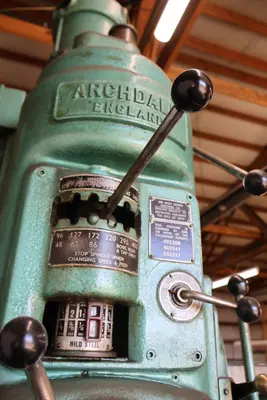

…Spindle Speeds:
......Bore, Ream, Tap (3): 48, 63, 86 RPM
......Drill (12): 96 - 2400 RPM

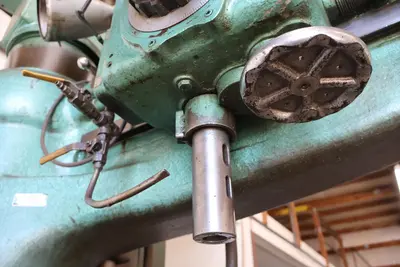

...Spindle Taper: MT #3 or MT #4
...Coolant
...Tooling (see pics):

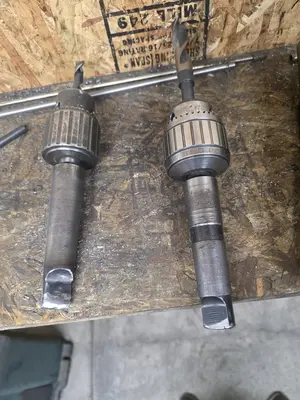

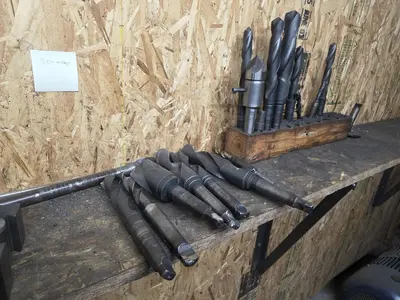

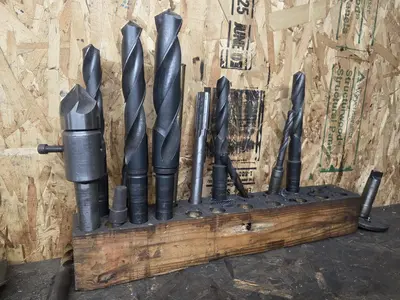

......Miscellaneous Shanks and Drills
......Vise

Dimensions (approx.): 72" x 36" x 108"
Weight (approx.): 7,000 lbs.

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner purchased shop recently; came with some equipment that he wishes to sell as he does not need for his business. This drill was under power and running; has since been disconnected. Owner can connect for demonstration; wish to limit to serious inquiries only.

The listed weight is what my research showed for an Archdale with this size arm, drilling capacity, and overall dimensions.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Oregon (Bend Metro Area)

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Some loading fees may apply if forklift rental required.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
