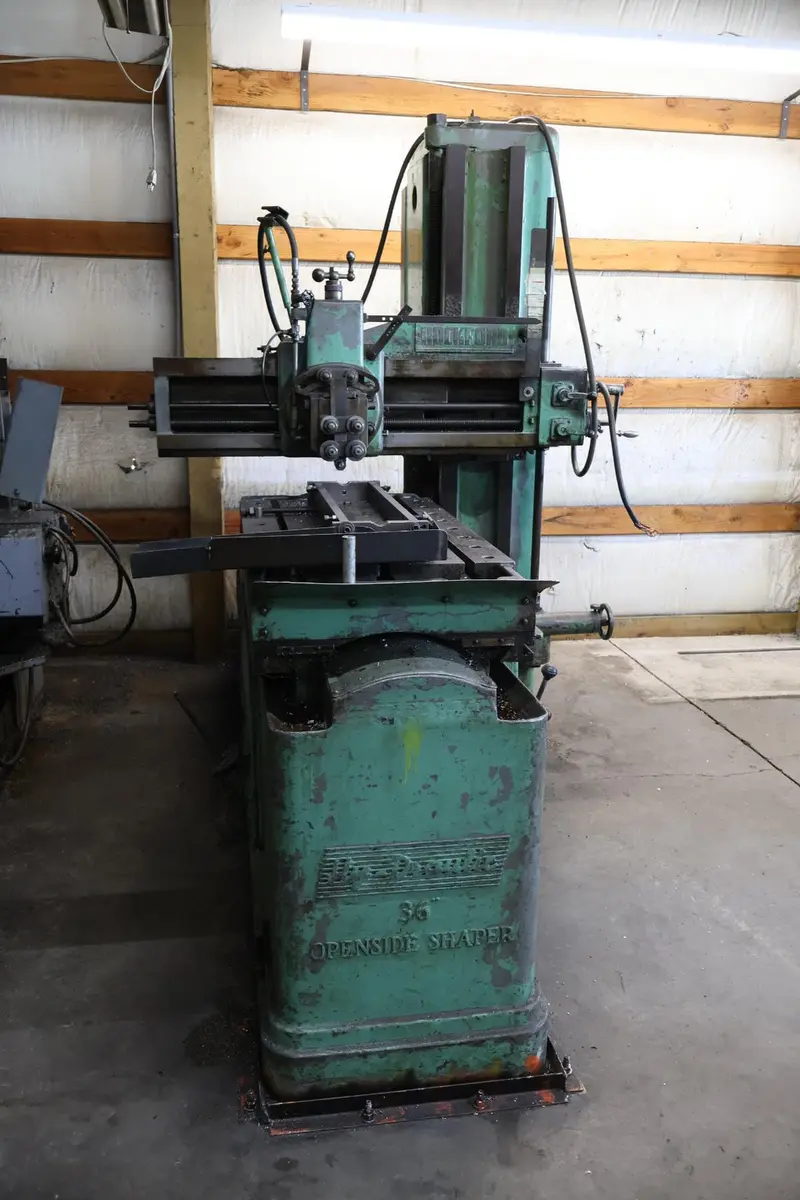

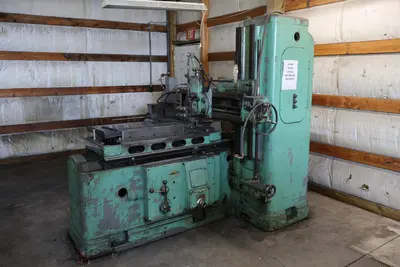

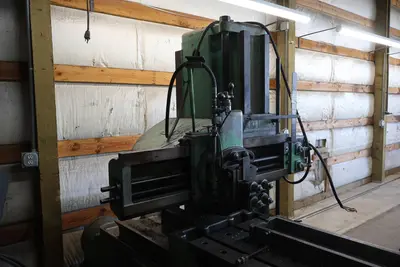

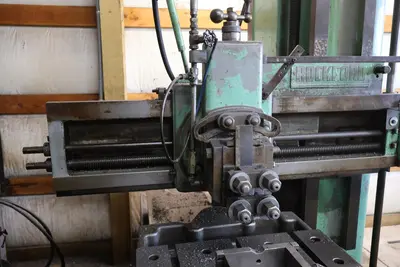

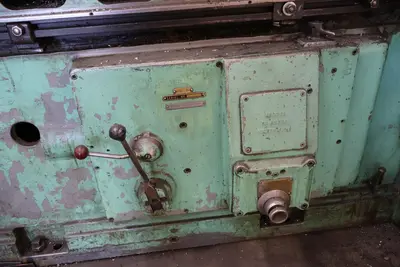

36" Openside Hy-Draulic Shaper

Description

Manual Shaper
OEM: Rockford Machine Tool Co. (Rockford, IL)
Model: 36" Openside Hy-Draulic Shaper
Serial No.: 76 UH 57
DOM: Between 1927 and 1935
Electrics: 220-440 Volt, 3 Phase, 60 Cycle
Main Motor: 10 HP

Features and Specifications:
...Maximum Stroke: 36"
...Length: Hydraulically Driven

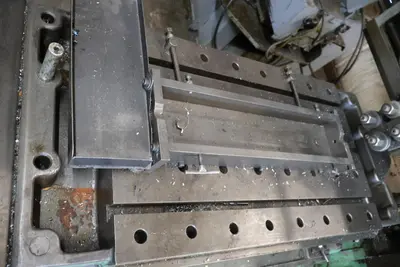

...Table Size: 22" x 36"
...Table Travel: 40"
...Cross-Rail: 44"
...Vertical Clearance: 24" Under Cross-Rail
...Cutting Speed: 0 - 110 FPM (infinitely variable)
...Return Speed Ratio: Independent Fast-Retract up to 150+ FPM
...Feed Rates: Infinite Hydraulic Adjustment up to 0.125 IPS
...Constant Cutting Force Thru 36" Stroke
....Nominal Operation:
......900 PSI Cutting Pressure Forward Stroke
......250 PSI Cutting Pressure Return Stroke
...Reversal System

Dimensions (approx..): 120" x 64" x 84"
Weight (approx.): 9,500 lbs. (based on internet research)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

Current owner purchased shop recently; came with some equipment that he wishes to sell as he does not need for his business. This shaper was under power and running; has since been disconnected. Owner can connect for demonstration; wish to limit to serious inquiries only.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Oregon (Bend Metro Area)

Equipment is not under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Some loading fees may apply if forklift rental required.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide shipping quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
