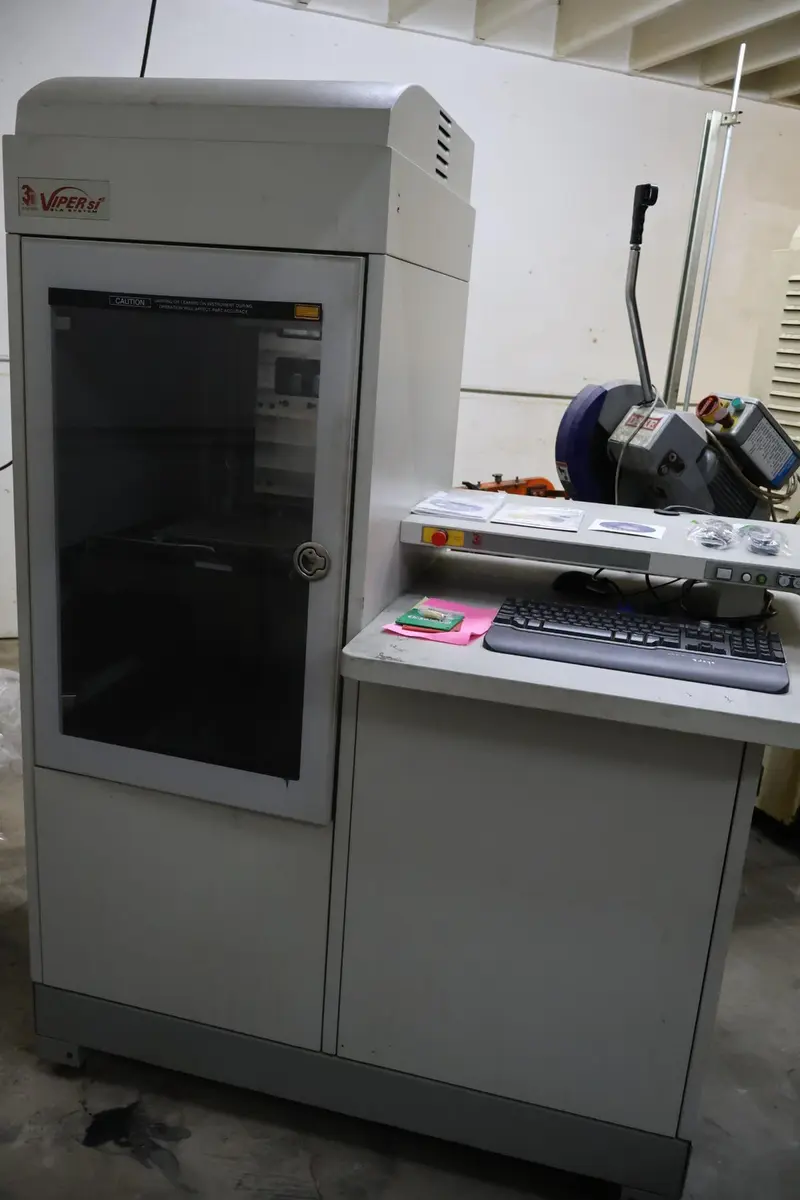

Stereolithography (SL) Printer
Manufacturer: 3D Systems, Inc.
Model: Viper Si2
Serial No.: 06FB0476
DOM: 09 / 2006
Electrics: 230-115 Volt, 50-60 Cycle, 1 Phase, 7.5-15 Amps
Features and Specifications:
Laser:
...Type: Solid State Nd:YVO4
...Wavelength: 354.7 nm
...Power at Vat: 100 mW Available
Recoating System:
...Process: Zephyr Recoating System
...Build Layer Capability:
......Minimum: 0.02 mm (0.001”)
......Typical: 0.10 mm (0.004”)

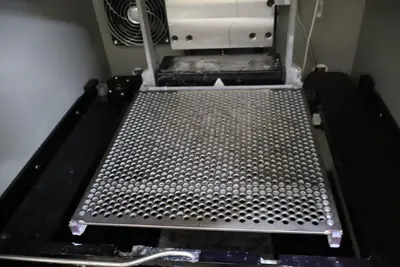

Elevator:
...Vertical Resolution: 0.025 mm (0.0001”)
...Position Repeatability: 0.0076 mm (0.0003”)
...Max Part Weight: 9.1 kg (20 lb)
...Typical Velocity During Part Building: 5 mm/sec (0.2in/sec)
Vat Capacity:
...Volume: 32.21 L ( 8.5 US Gallons)
...Max Build Envelope, Standard Mode: 250 x 250 x 250 MM XYZ (10” x 10” x 10”)
...Max Build Envelope, HR Mode: 125 x 125 x 125 MM XYZ (5” x 5” x 10”)

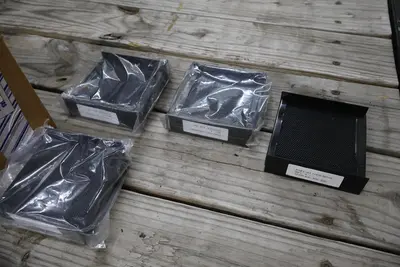

...Interchangeable Vat: Yes
System Controller & Software:
...Control Software: Buildstation software
...Operating System: Windows NT
...Network Type & Protocol: Ethernet, IEEE 802.3 10/100 Base-T
Power:
...100-120 Volts, 50/60 Cycle, 6 Amps
...220-240 Volts, 50/60 Cycle, 3 Amps
...UPS Power Rating 2KVA Minimum

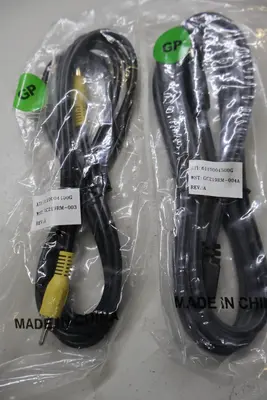

...All Documentation (see pics):
......Specifications, Sales Literature, Discs, Miscellaneous
Machine Dimensions (approx..): 53” x 34” x 70”
Machine Weight (approx..): 1,100 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This machine came out of a large company’s prototype shop. Has not been used since 2025. MD Equipment Services (MDES) has in storage in Portland, OR warehouse.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR
Equipment is NOT under power; available for inspection.
Seller agrees to load equipment onto Buyer's transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can off delivery services.
Delivery fee dependent on time, distance, and fuel.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
