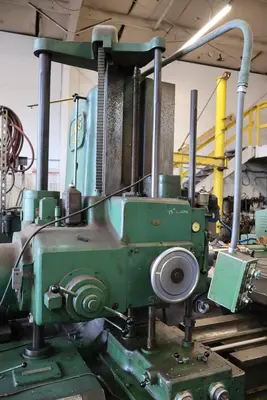

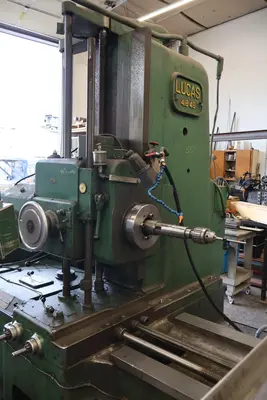

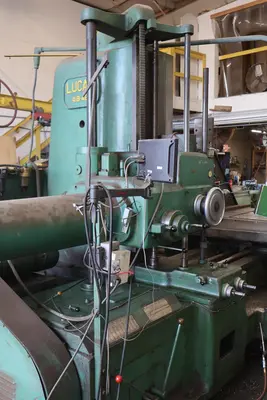

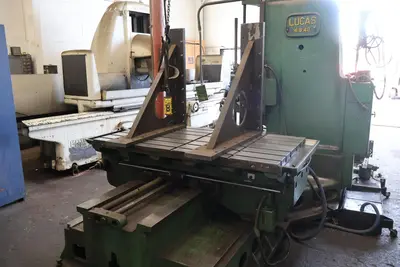

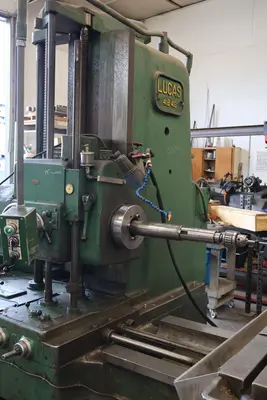

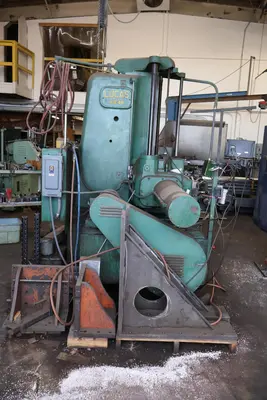

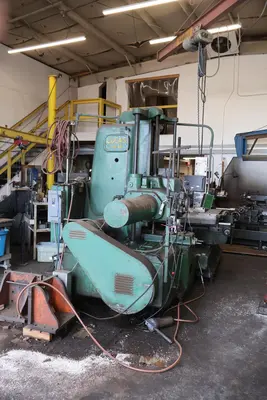

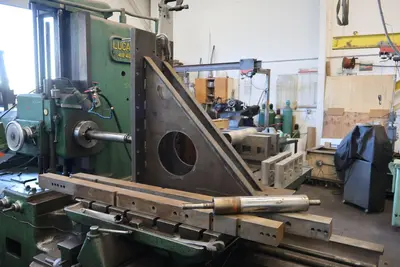

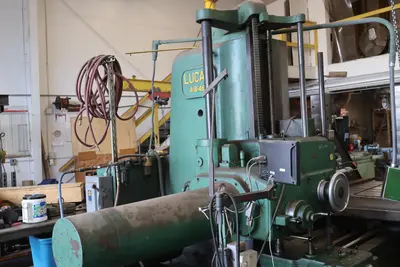

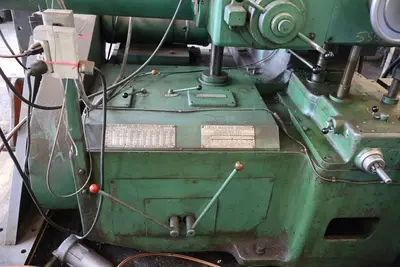

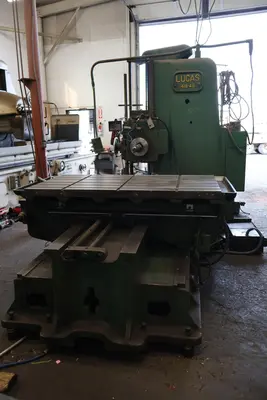

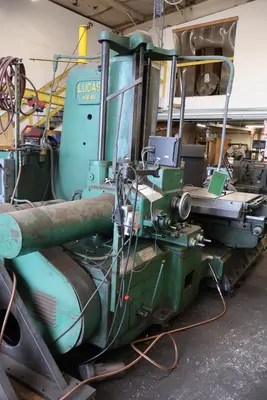

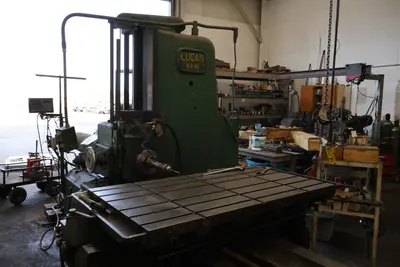

Lucas Horizontal Boring Mill

Description

Heavy-Duty Manual Horizontal Boring Mill
Manufacturer: Lucas Machine Division (Cleveland, OH)
Model: 41B-48
Serial No.: 41B1015
Date of Manufacture: 1956
Electrics: 230-460 Volt, 3 Phase, 60 Cycle, 26-13 Amps

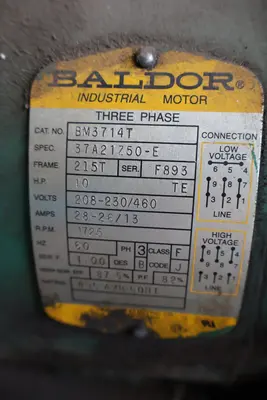

Main Motor: 10 HP, 1725 RPM

Features and Specifications:

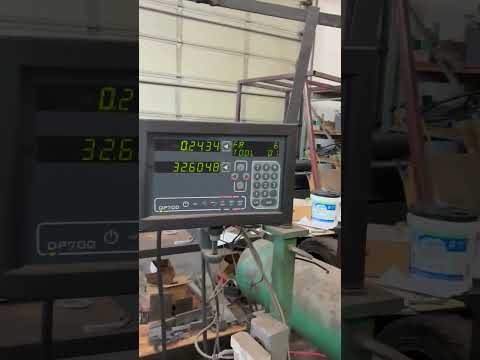

...DRO DP700

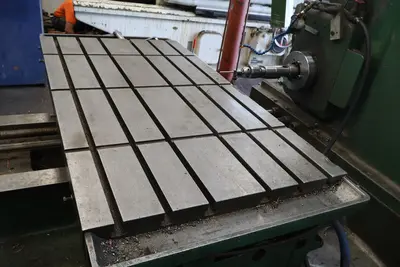

...Table Size: 34” x 62”

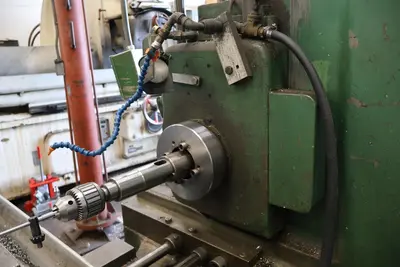

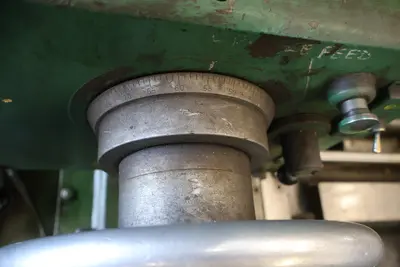

...Spindle Specifications:

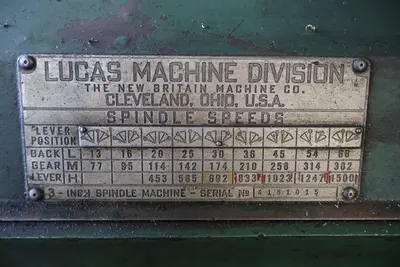

......Spindle Speeds (25): 13 – 1500 RPM
......Spindle Diameter: 3”
......Taper:
........3” Spindle Design: #5 MT
........4” Spindle Design: #50 ASA/NMTB

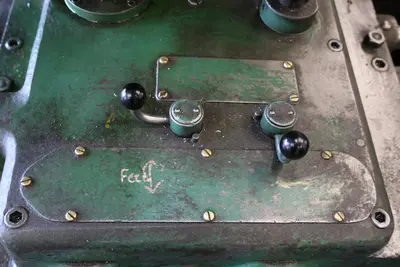

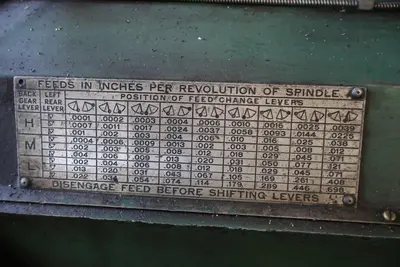

...Feeds (IPR):
......Low (27): .002 - .698
......Medium (27): .0004 - .121
......High (27): .0001 - .038
...Travels:
......X-Axis: 48” – 60”
......Y-Axis: 36” – 48”
......Z-Axis (Quill): 18” – 25”
......W-Axis (Saddle Depth): 48” – 58”
...Rapid Traverse (IPM): 75 – 112

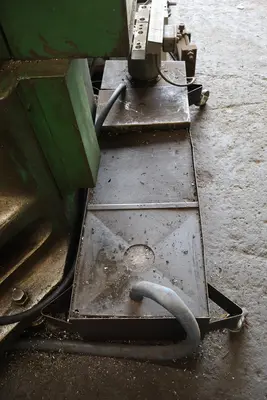

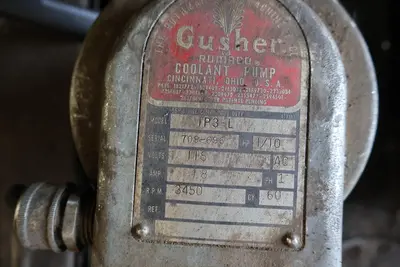

...Coolant System

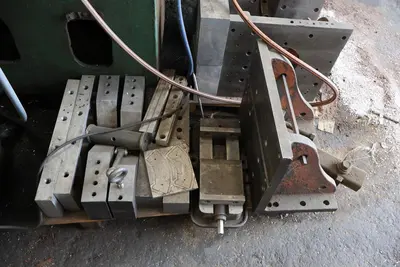

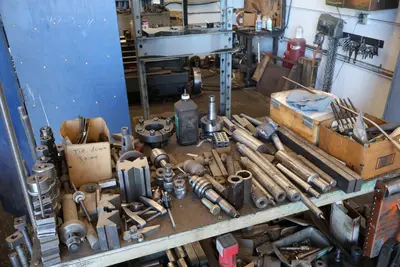

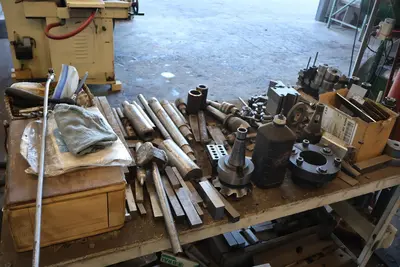

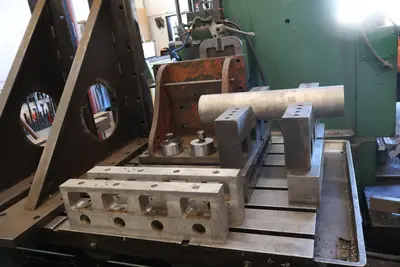

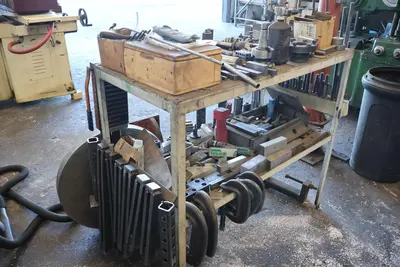

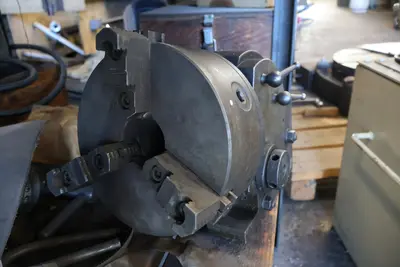

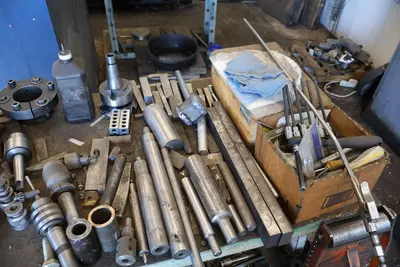

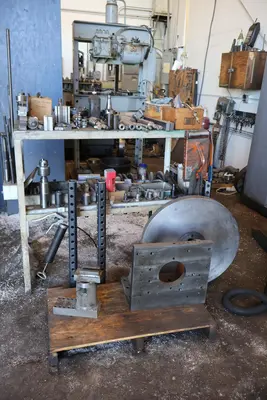

...Tooling (see pics)

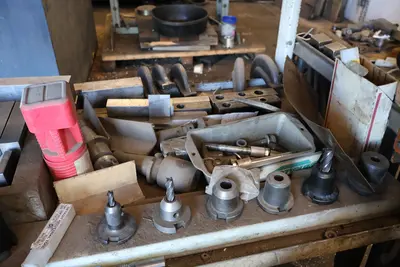

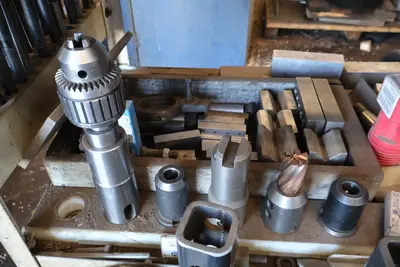

......Holders

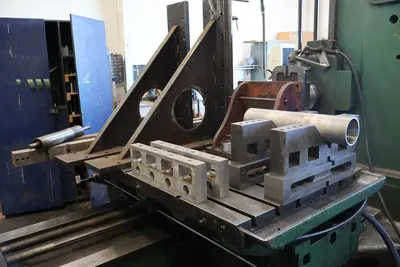

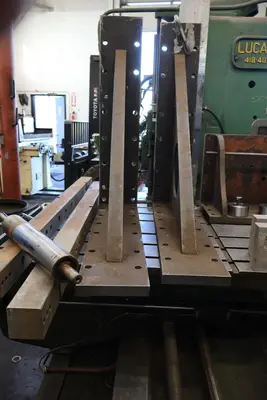

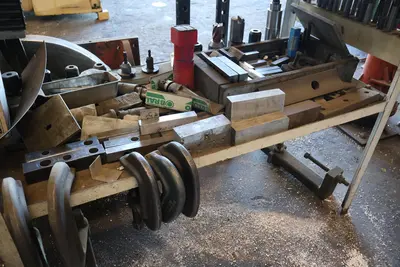

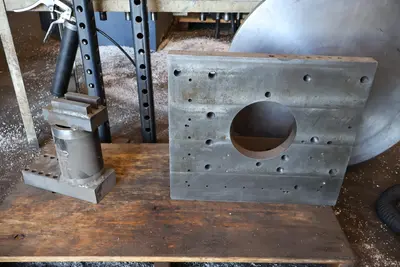

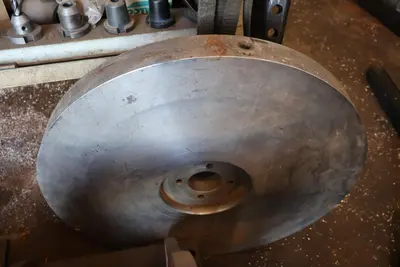

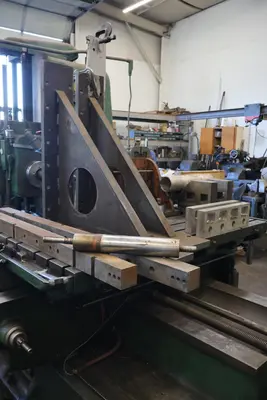

......Machining Plates & Arbors

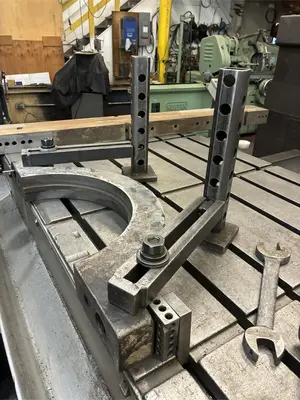

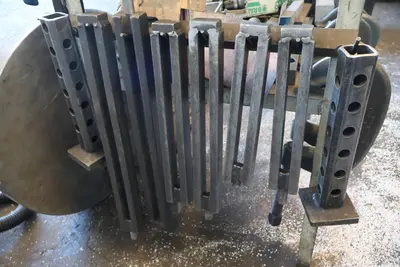

......Tie Clamps

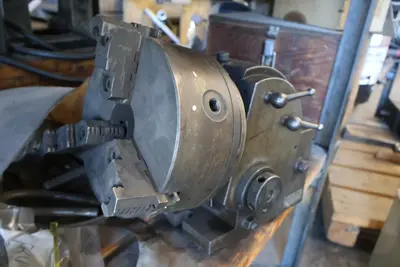

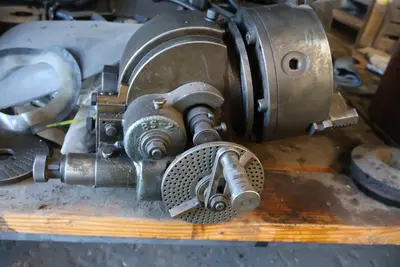

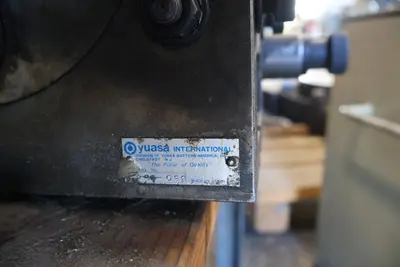

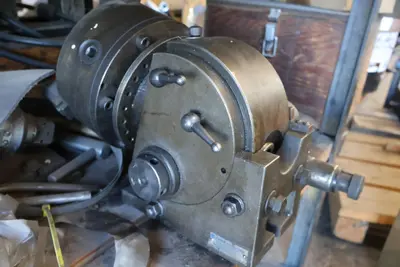

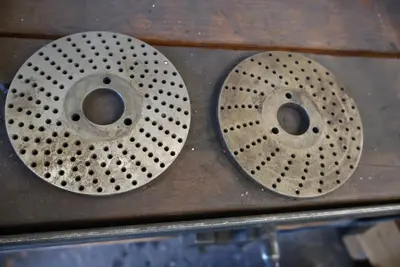

......Yuasa Dividing Head

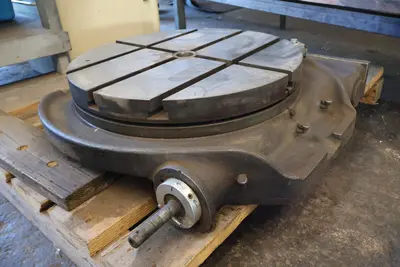

......24" Rotary Table
......Various

Main Dimensions (approx.): 168” x 102” x 108”
Weight (approx.): 28,000 – 30,000 lbs. (machine only)

Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.

Functionality Notes & History:

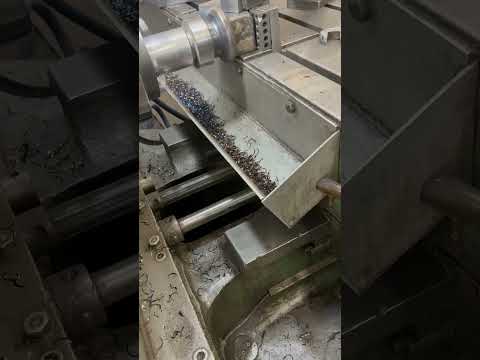

This equipment was purchased by my customer 10 years ago. Machine is still making parts in his shop; has made good money for him. He is working towards retirement within the next 1-2 years so he is slowly liquidating his equipment. Machine is under power; available for test and inspection.

Comes with lots of tooling: dividing head, plates, arbors, holders, and many miscellaneous pieces. MDES can provide rigging, loading, and shipping quotations.

CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS

EQUIPMENT LOCATION: Central Oregon (Bend Metro Area)

Equipment is under power; available for inspection and test.
Buyer responsible for loading equipment onto their transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading quote.

Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
