Manual Engine Lathe 15 x 48
Have one to sell?
ConditionUsed
1 available

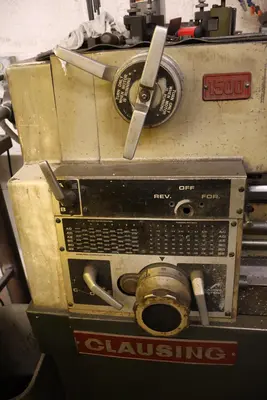

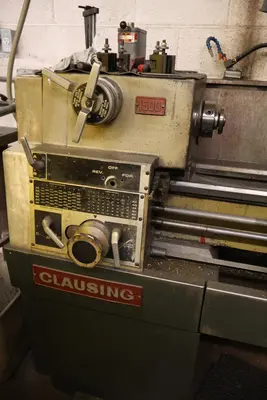

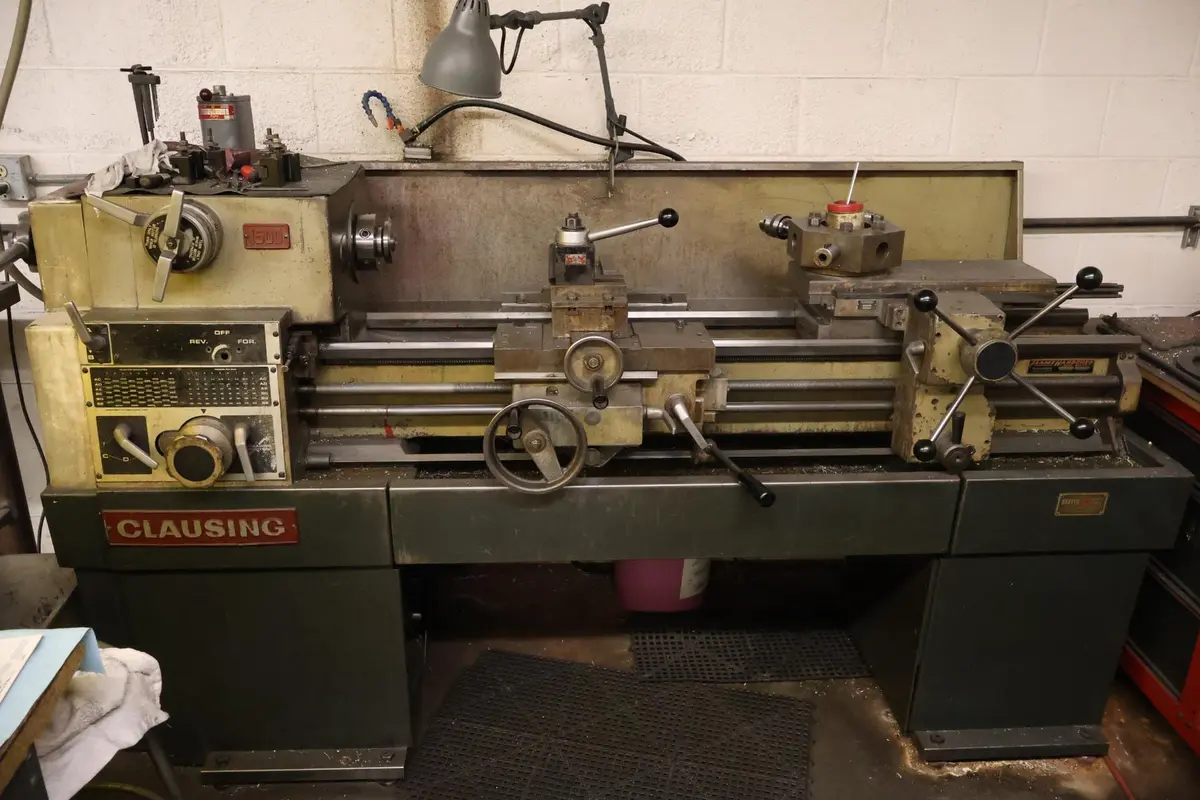

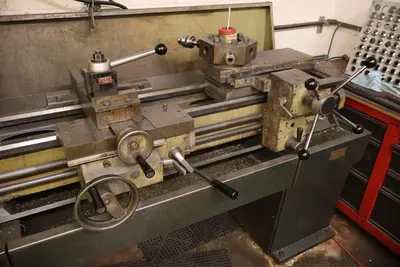

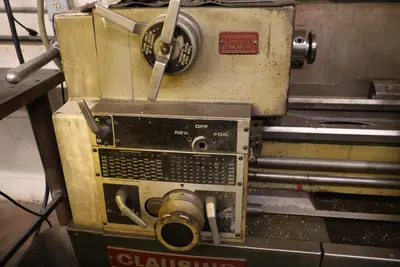

Manual Engine Lathe
OEM: Clausing
Model: 1500 Series
Year: 1975
Electrics:230-460 Volt, 3 Phase, 60 Cycle
Main Motor: 7.5 HP
Features and Specifications:
...Swing Over Bed: 14.5"
...Swing Over X-Slide: 8.5"
...Spindle Specifications:
......Speeds: 45-2,000 RPM Infinite, Variable
......Bore: 1-9/16"

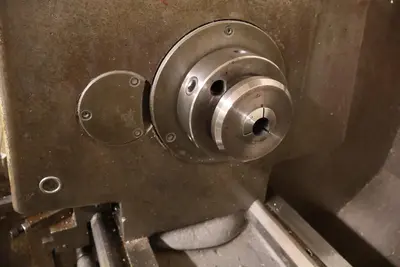

......Nose: D1-4 or D1-6
...Center Distance: 48"
...Bed Width: 11"

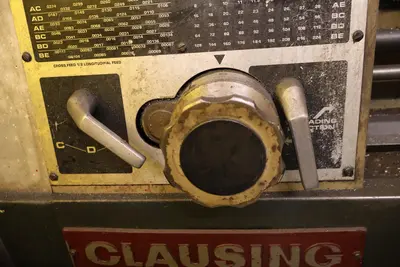

...Thread Cutting Settings (54): 4 - 224 TPI
...Feedrate Settings (54):
......Cross-Feed Rates: .00069 - .0374 IPR
......Longitudinal Rates: .0016 - 0.100 IPR
...Tailstock Taper: M.T. #4
...Tooling:
......Misc. Holders

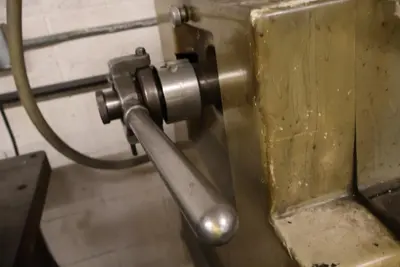

......Collet Closer
Dimensions (approx.): 86" x 36" x 50"
Weight (approx.): 2,150 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
Owner has decided to retire after 40 years in the business. Some equipment he is taking to his home shop and is selling the rest. Still an active shop at this time, making parts. Equipment is under power and available for inspection.

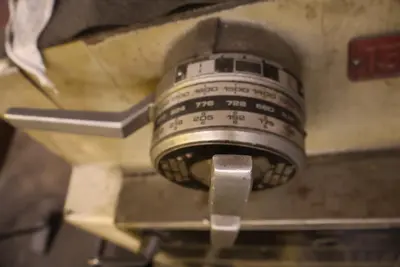

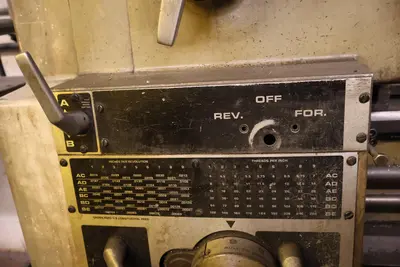

Note: the original spindle reversal switch was removed and replaced with an speed attachment that can be see in pics mounted on top. He said this lathe has been a good runner for him. He demonstrated to me; it works well.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Vancouver, WA Metro Area
Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services (MDES) can provide rigging, loading quote.
MDES can provide delivery services dependent on time, distance, fuel
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
