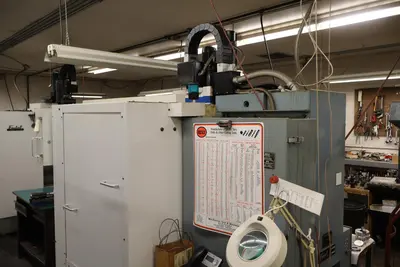

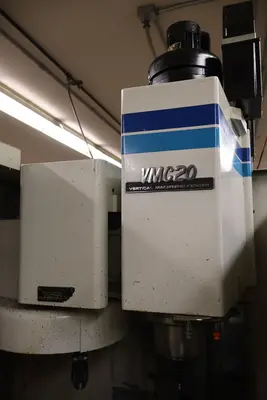

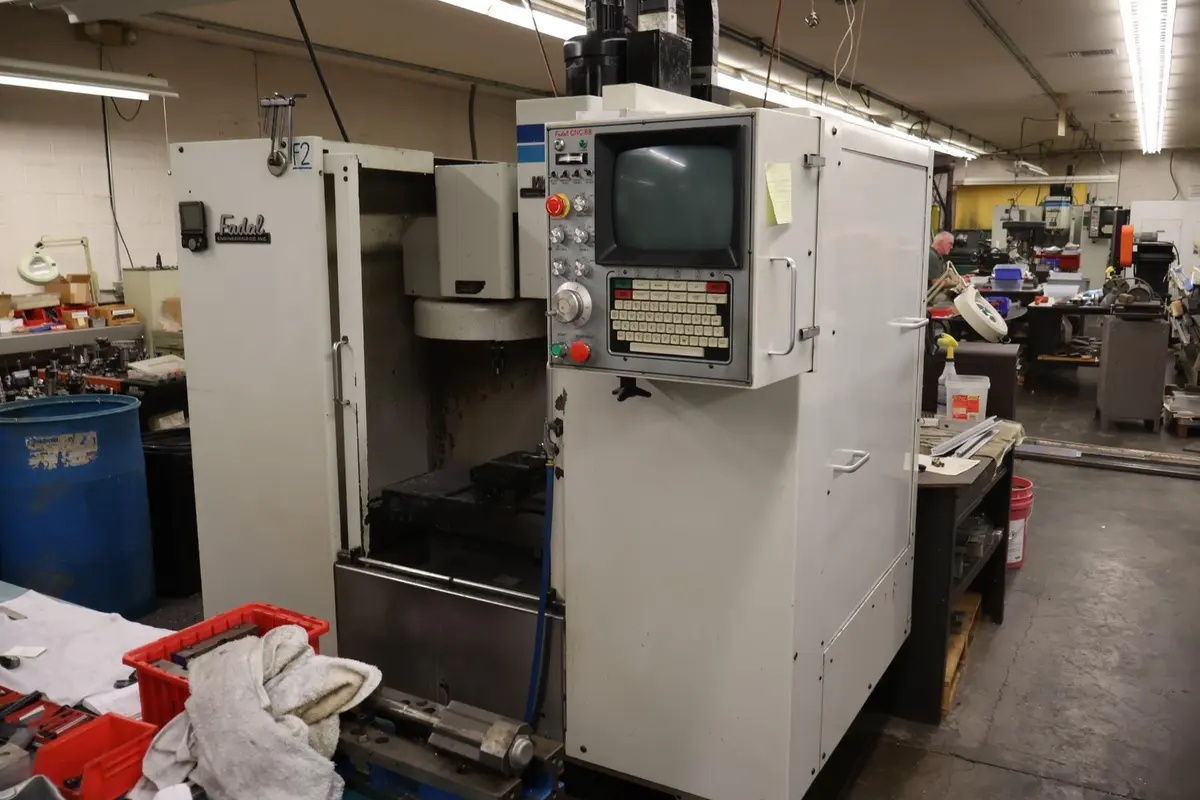

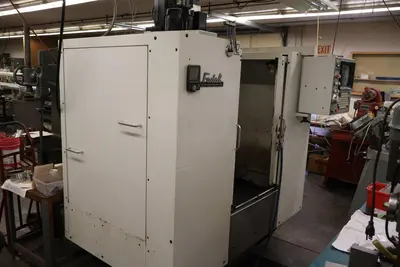

Fadal VMC-20 Machining Center
Have one to sell?
ConditionUsed
1 available
Vertical Machining Center
Manufacturer: Fadal Engineering
Model: VMC20 (Model 904-20)
DOM: 1992

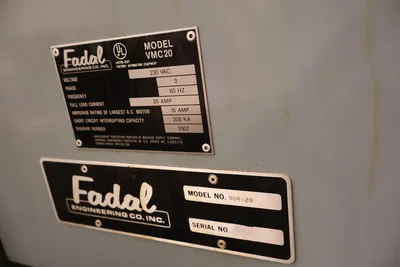

Electrics: 230, 3 Phase, 60 Cycle, 25 FLA
Largest Motor: 15 Amp
Spindle Power: 7.5 HP
Features and Specifications:

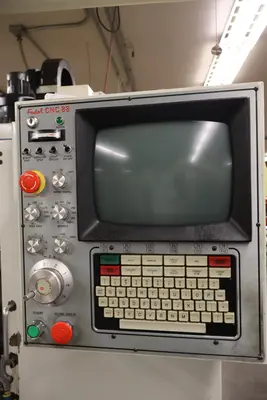

...CNC Controls: Fadal CNC 88

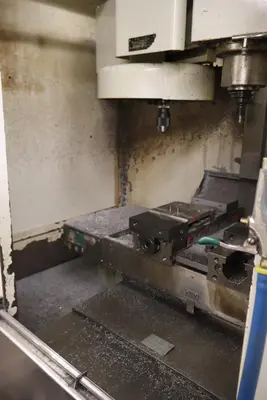

...Table Size: 29.5” x 16”
...Table Load: 750 lbs.
...Travels:
......X-Axis: 20"
......Y-Axis: 16"
......Z-Axis: 20"

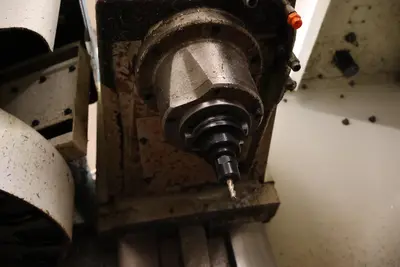

...Spindle Specifications:
......Speed (max.): 7,500 RPM
......Taper: CT40

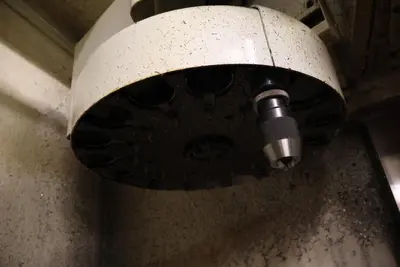

...ATC: 20+1 Slots, Horizontal Umbrella
...Feeds (X,Y,Z):
......Cutting Feedrate: 250 IPM
......Rapid Traverse: 400 IPM
...Rigid Tapping

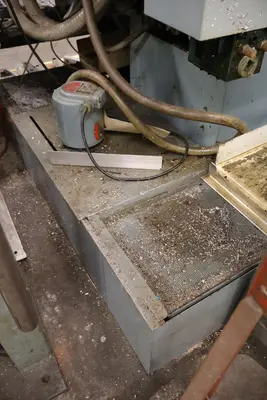

...Flood, Mist Coolant

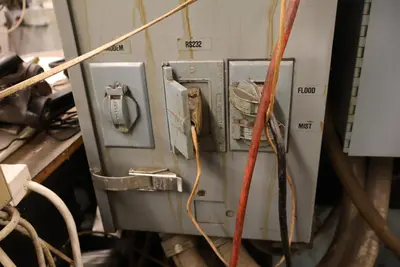

...RS232 Connection

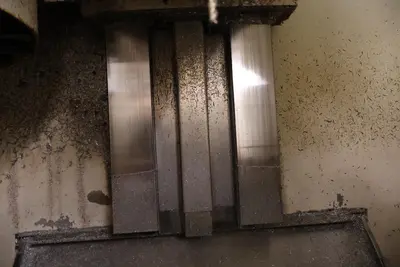

...Rigid, Cast-Iron Box Ways

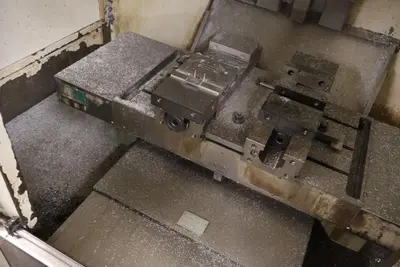

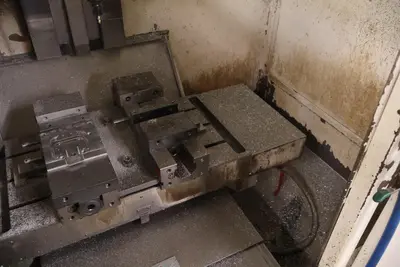

...Vises (2)
Dimensions (approx.): 75" x 77" x 96"
Weight (approx.): 7,500 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
Machine is owned by a CNC and Manual machine shop who has been in business for 30 years. He is closing up shop, retiring. Some equipment is going to his home shop. I am working on liquidating the remaining units. Equipment is under power, available for inspection and test.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Vancouver, WA Metro Area
Equipment is under power; available for inspection.
Buyer responsible rigging/loading onto transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can supply loading and freight quotes.
Contact MD Equipment Services LLC to schedule inspections or arrange purchase details.
